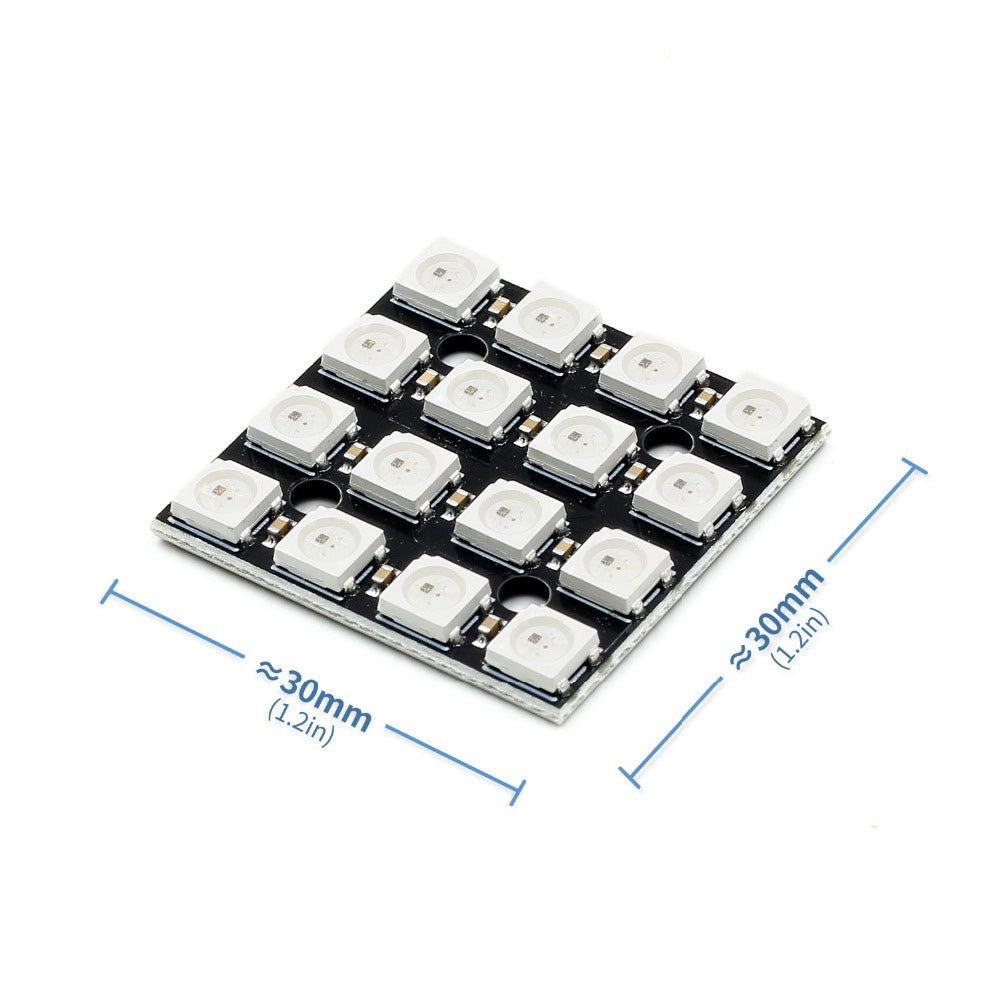

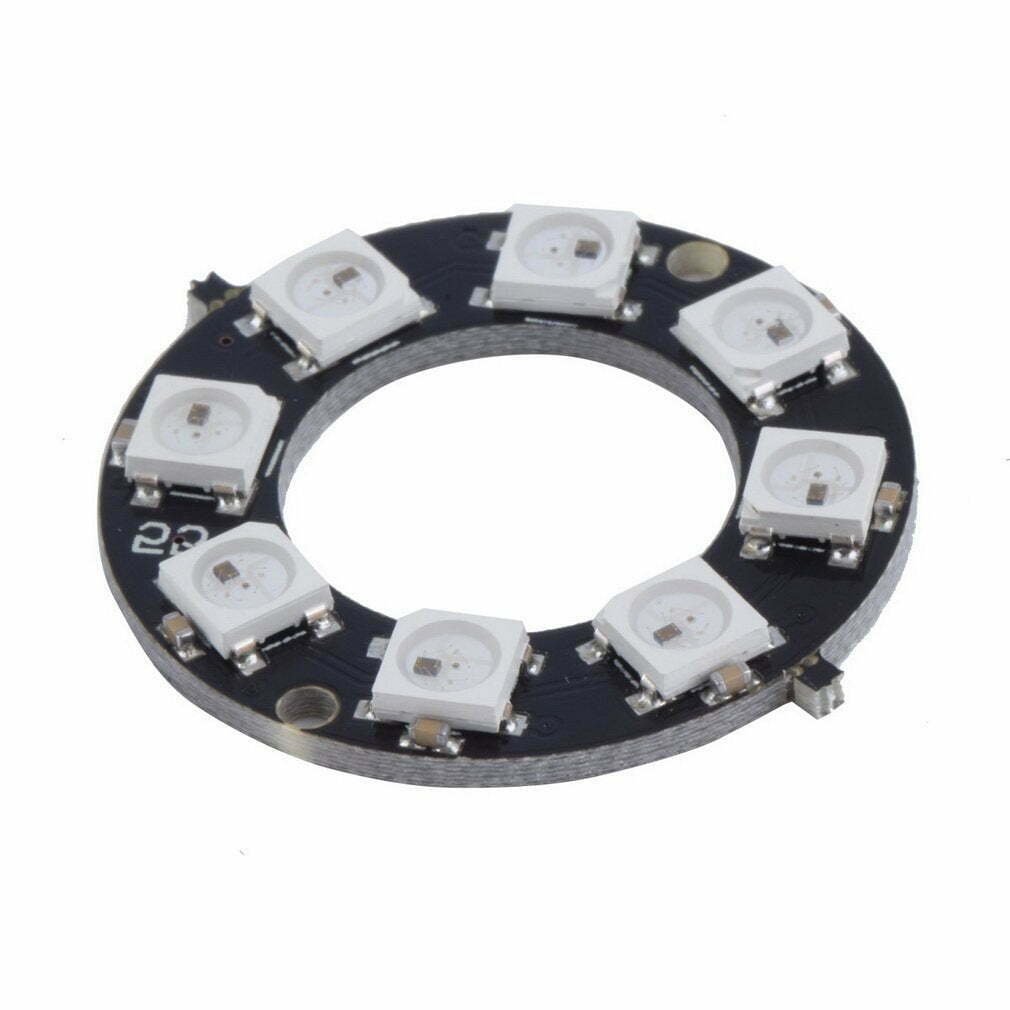

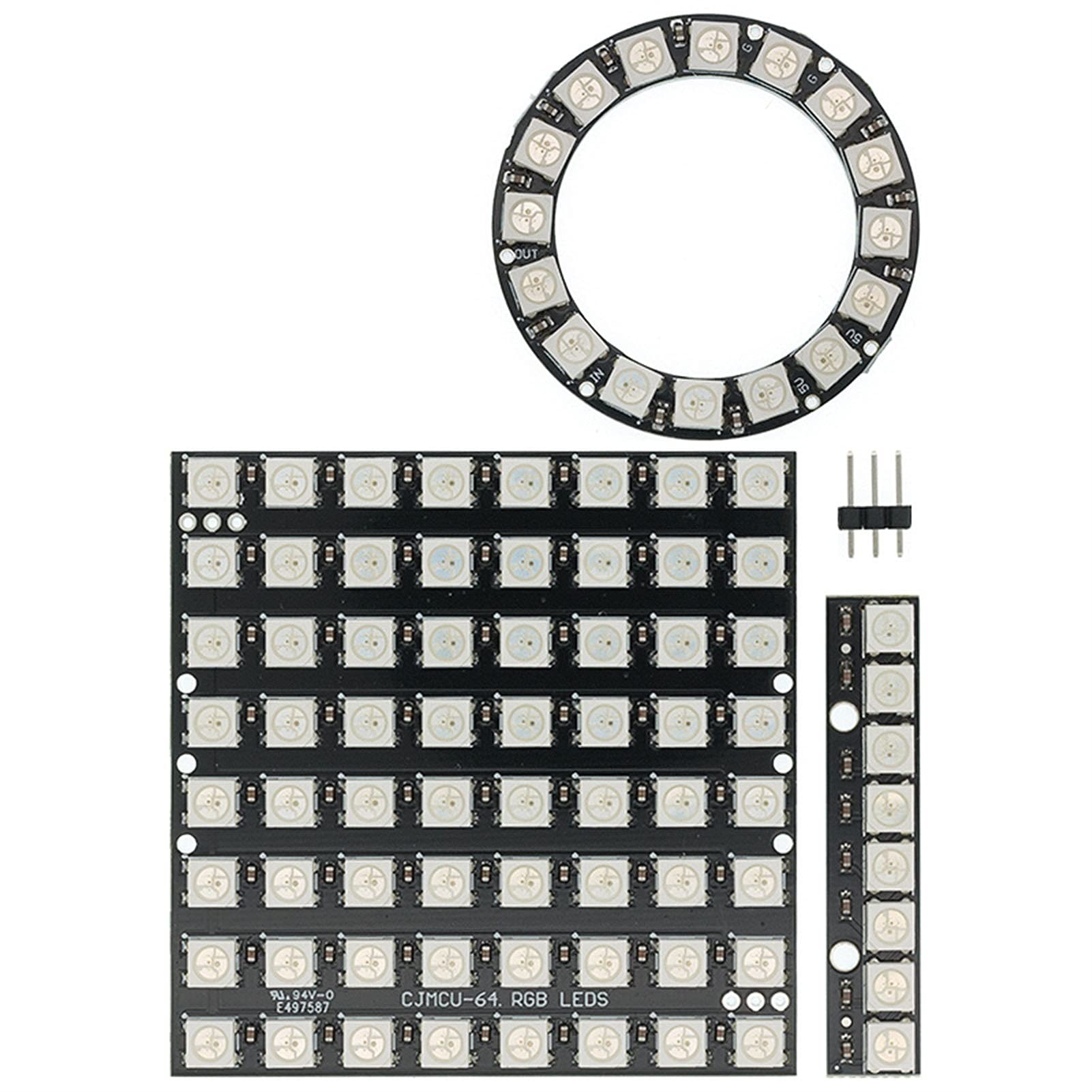

1/3/4/8/12/16/24 Bit WS2812 5050 RGB LED Lamp Panel Module

WS2812 full color LED module for arduino
Chip: WS2812B (built in LED)
LED: 5050 package RGB full color highlight
Port: Number

Platform: MCU Control

1.The IC control circuit and LED point light source share one power supply.
2.The control circuit and the RGB chip are integrated in a 5050 packaged component to form a complete external control pixel.
3.Built-in signal shaping circuit,after any pixel receives the signal,it will be outputted after waveform shaping to ensure that the line waveform distortion will not accumulate.
4.Built-in power-on reset and power-down reset circuits.
5.Serial cascade interface,can receive and decode data through one signal line.
6.When any two-point transmission distance does not exceed 5 meters,no additional circuit is required.
7.When the refresh rate is 30 frames/s,the number of cascades is not less than 1024 points.
8.The data transmission speed can reach 800Kbps.
9.The color of light is highly consistent and cost-effective.
Main application areas
1.LED full-color luminous character string,LED full-color module,LED full-color soft light bar,hard light bar,LED guardrail tube.
2.LED point light source,LED pixel screen,LED special screen,various electronic products,electrical equipment marquee.
